4 Maps:Keratometric Power Deviation,Corneal Thickness,True Net Power,
发布2023年3月28日
已更新2025年11月13日
通过屈光说
Keratometric Power Deviation
这张图显示了轴向曲率图与净屈光度图之间的差值。
Corneal Thickness
角膜厚度。角膜厚度图是通过Pentacam建立的3D模型计算得来。在地形图上任意点点击鼠标左键，对应点角膜厚度都能显示出来。

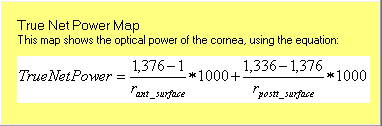

True Net Power
净屈光度。这张图显示角膜光学屈光度，用以下公式计算。
净屈光度=1000*（1.376-1）/前表面曲率半径 +1000*（1.336-1.376）/ 后表面曲率半径
